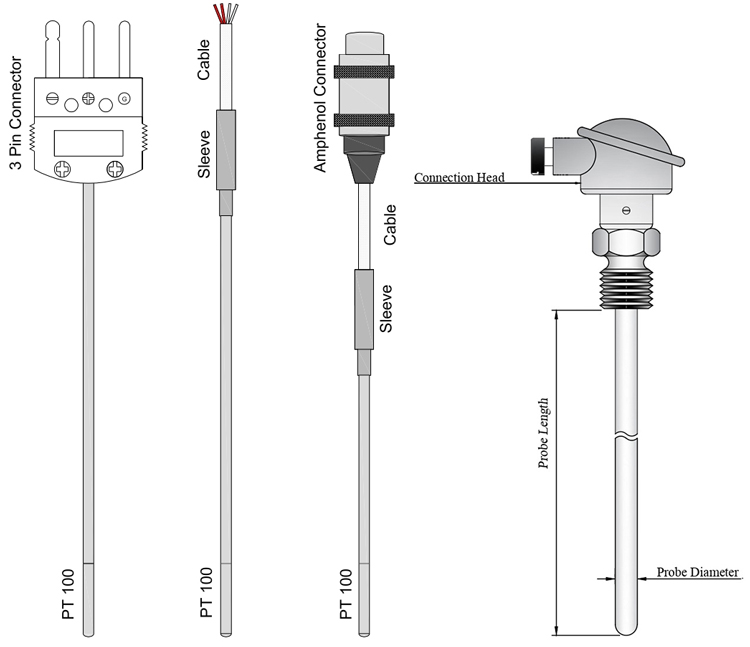

Resistance Temperature Detector (RTD) (Pt100)
Technical Data
Measuring Resistor: Standard PT100 acc. to IEC 60 751
Permitted Deviation: Class A or B acc. to IEC 60 751:2008
Sheath Diameter: 1.5mm to 10mm
Insulation Resistance:
Typical>/=5000 MOhm “m at 23 Deg. C
Min 1000 MOhm * m (DIN EN 61 515)
Insulation Material: High-purity Aluminium Oxide (Al2O3)
Sheath Material: SS material & High Resistant Steel.

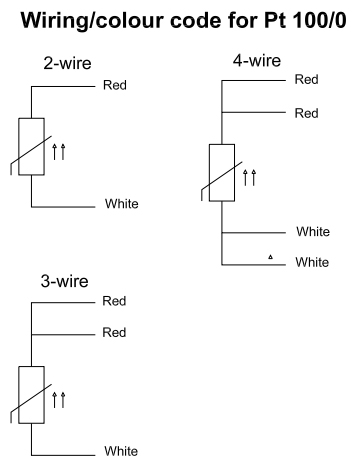

Circuitry: 2,3 & 4 wire from measuring resistor as single PT100
